What is a Spool Drawing?
A spool drawing—sometimes also known as a fabrication isometric or spool piece drawing—is a technical document for the fabrication of a piping assembly called a spool. Spool fabrication occurs in a fabrication shop prior to field installation, and the result is a prefabricated pipe section with flanges and welds made in place, ready to be installed.
The term "spool" refers to the look of old-fashioned prefabricated pipe assemblies, which were usually a single length of pipe with flanges attached to either end resembling a spool of thread. However, today the term is widely used to refer to any prefabricated pipe spool with multiple fittings and components installed.
Every spool drawing is created from a piping isometric drawing or extracted directly from a 3D piping model. It contains all information regarding dimensions, weld locations, material specifications, and many details necessary to cut, fit, and assemble a spool. A spool drawing is a final guide for a fabricator—there is nothing vague left.
Purpose of Spool Drawings in Piping Fabrication
Spool drawings translate engineering intent into physical shop fabrication, directing the manufacturing of assemblies before they hit the field.
Shop Fabrication Guidance
Every spool drawing provides instructions for fabricating or assembling a spool correctly. It contains detailed information regarding cut lengths, weld locations, fittings, material specifications, etc.
Quality Control & Traceability
Each spool gets a unique number to be traced back to the parent isometric and line number, making it easy to track welds, inspect materials, and conduct non-destructive examinations.
Lifting & Transport Planning
Weight information and center of gravity estimates are calculated and included in spool drawings to make sure that the spool can be properly lifted, rigged, and transported.
Field Installation Guidance
Spool drawings include information regarding matching marks, orientation marks, bolt details, insulation clearances, and installation sequence markers.
How Spool Drawings Increase Construction Efficiency
Professional spool drawings provide significant advantages in every aspect of the pipeline construction process.
Reduction of Field Rework
If measurements of spools are incorrect, the field crew won't be able to install those. Professional spool drawings ensure all dimensions align, leaving no room for on-site modifications.
More Shop Welds
Spool drawings allow you to split an isometric into several smaller parts, ensuring that as many welds as possible get manufactured in a controlled fabrication shop environment.
Labor Savings
Enables prefabrication of entire pipework sections, reducing field labor requirements, avoiding adverse weather holds, and drastically lowering on-site man-hours.
Reduced Material Waste
Knowing exactly how much material you need allows nested material purchasing and precise pipe cutting, minimizing scrap and pipe off-cut waste.
Quicker Delivery
Automated extraction and modeling methodologies allow drawing packages to be generated rapidly, speeding up procurement and shop fabrication launch.
Improved Project Coordination
Utilizing spooling platforms guarantees clash-free models and well-fitting interfaces, resulting in smooth inter-trade coordination.
Types of Spool Drawings Explained
We detail and extract spool drawings across multiple classes depending on the system complexity, fluid medium, and plant environment.
Fabrication Spool Drawings
Compliance: ASME B31.1 / B31.3These drawings contain all information a fabricator needs to manufacture a prefabricated pipe assembly according to project specifications. They feature weld symbols, pipe schedules, material lists, references to support structures, and non-destructive examination (NDE) requirements.
Drawing Inclusions:
- Weld numbers and weld maps (shop vs. field welds)
- Standard symbol sets for joints, bevels, and tolerances
- ASME-compliant specifications for pressure piping assemblies
- Non-destructive testing specifications and notes
Development Process of Spool Drawings
From CAD modeling to fabrication-ready outputs, we ensure accuracy and compatibility through integrated steps.

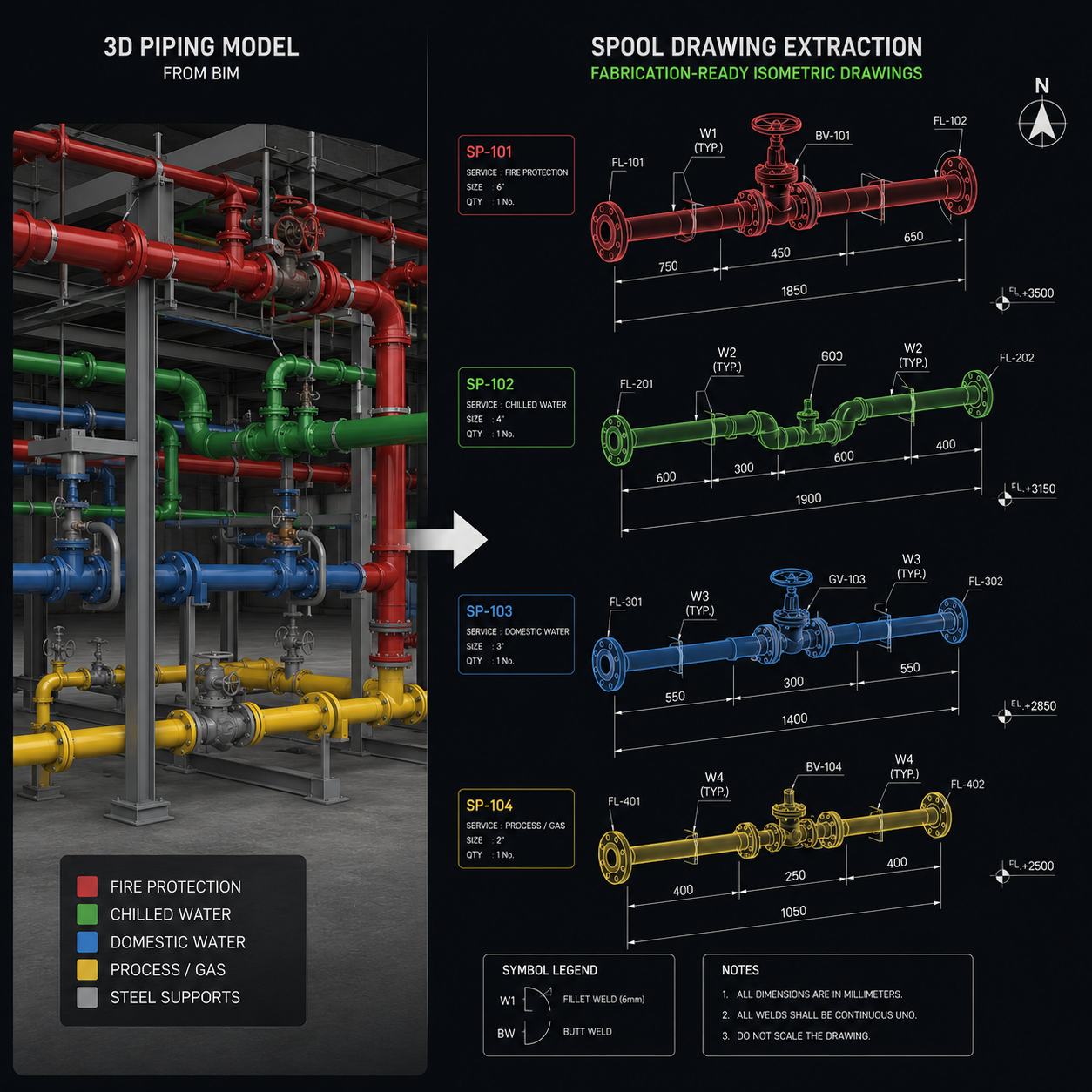

Piping Model Definition
The way from design modeling to fabrication ready spools starts with designing a piping system and defining its routing, dimensioning and all other parameters in tools like Revit, AutoCAD Plant 3D, or AVEVA E3D.
Data Extraction & Detailing
Spool sheets, BOMs, cut lists, joint lists, and isometric drawings are extracted from the model automatically. Automation saves a great deal of time and effort compared to manual detailing cycles.
BIM & Model Integration
Geometry is extracted directly from the model, embedding metadata regarding materials, systems, and locations. This aligns spools with clash detection models and removes errors.
Quality Verification
Includes verification of all dimensions, offsets, angles, weld mapping, material validation, compliance checks, and coordination checks.
Detailed Spool Drawing Workflow
Our structured mechanical detailing stages ensure each segmented pipeline spool fits project parameters perfectly.
First of all, our specialists will receive the design documents for your project including P&IDs (Piping and Instrumentation Diagrams), piping layout, and 3D model. These documents become the basis for all spool drawings.
Next, we perform a complete modeling review and validate all routing, specifications, and dimensions. We make sure that your model doesn't have errors and clashes and then we analyze potential fabrication and installation issues.
This operation is carried out for creating smaller, more manageable sections of a pipe network. Decisions on segmentation depend on maximum transportable lengths/weights, logical break points near field welds, shop capacity, and site accessibility.

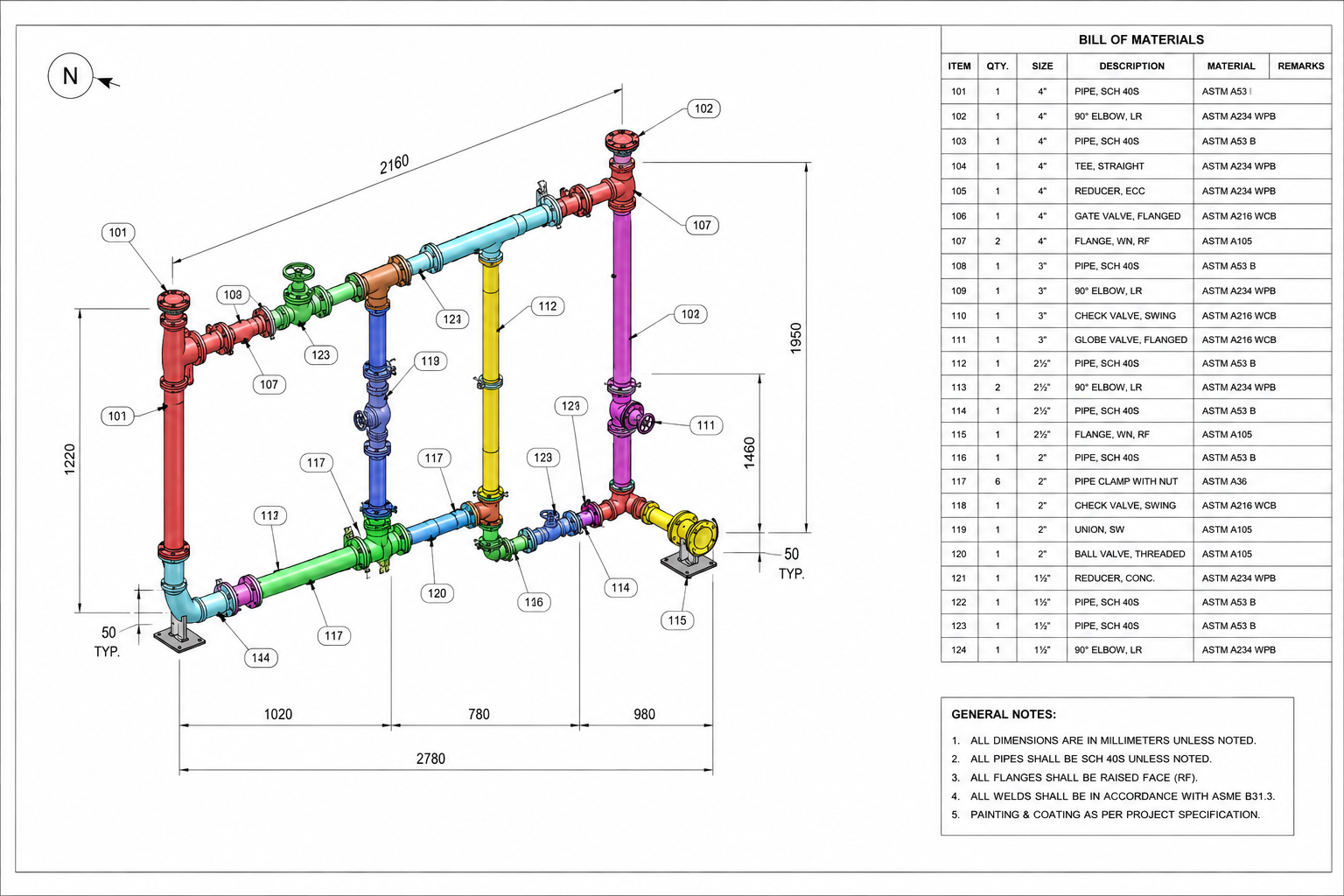

After segmentation, a set of spool drawings will be created using BIM and CAD software. Every spool drawing will include a corresponding isometric representing the spatial orientation of the assembly.
Every spool sheet contains a detailed Bill of Materials listing all items, pipe spec, ASTM grade, sizes, schedule, weld numbers indicating sequential weld IDs (shop vs. field), joint details, NDE, and PWHT requirements.
Finally, our specialists will go through a thorough quality check to see if your spools meet fabrication and installation criteria. We verify dimensions, offsets, tolerances, and mechanical clearances.
Approved spool packages will be provided for further manufacturing, containing spool drawings, material requisitions, weld maps, and non-destructive examination (NDE) requirements.
Who Needs Spool Drawings?
Prefabrication drawings serve as structural guides across multiple teams in piping fabrication and plant construction.
Fabrication Shops
Spool drawings serve as standard work instructions for pipe cutting, welding, and assembling operations.
EPC Contractors
Engineering, procurement, and construction contractors use spool drawings to coordinate design, procurement, and site construction.
Plant Owners
Plant owners benefit from spool drawings in the form of enhanced quality, shorter construction periods, and better maintainability.
Oil and Gas Operations
Projects involving the creation of complicated piping networks in upstream, midstream, and downstream operations need accurate spool drawings.
Power Generation Plants
Used in the construction and maintenance of power generation plants, both nuclear and fossil fuel plants.
Pharmaceutical Plants
Critical for designing clean piping systems, hygienic orbital welding tracks, and regulatory compliance.
Food & Beverage Plants
Sanitation issues are addressed directly in spool details to build clean, sanitary, and hygienic product piping.
HVAC & Mechanical Teams
Spool drawings are needed for creating prefabricated piping in large commercial or institutional HVAC systems.
Advantages of Professional Spool Drawing Services
Outsourcing spool detailing to mechanical specialists yields distinct operational benefits.
Faster Spool Fabrication
BIM-driven processes eliminate repetitive detailing work, accelerating drafting and allowing shop manufacturing to launch ahead of schedule.
Less Waste Materials
Accurate material takeoffs and nested pipe cutting patterns ensure pipe materials are used efficiently, minimizing costly scrap.
More Accurate Installations
Pre-coordinated spools are clash-checked against architectural and structural models, ensuring they fit correctly the first time on-site.
Better Weld Tracking & QC
Every joint receives a unique sequential ID linked to the spool page, allowing simple NDE, mapping, and inspector approval tracking.
Reduced Field Modifications
Precise dimensions and segmented spools prevent errors, eliminating the need for cutting, re-beveling, and welding in the field.
Efficient Project Coordination
Complete integration with BIM technologies coordinates piping paths, eliminating design gaps and reducing RFIs and change orders.
Sectors We Serve
We detail ASME-compliant pressure piping spools for diverse processing, utility, and building infrastructures.
Oil & Gas
Upstream, midstream, and downstream piping projects.
Petrochemical
Polymer, chemical, and refining production facilities.
Power Plants
Nuclear power, steam lines, and renewable energy plants.
Pharmaceuticals
Sanitary clean piping systems and API facilities.
Water Treatment
Municipal wastewater and industrial water purification.
Food & Beverages
Hygienic stainless steel pipelines and process skids.
Manufacturing Plants
Automotive, aerospace, and general factory setups.
Commercial Buildings
HVAC systems in hospitals, data centers, and schools.
Why Choose Our Spool Drawing Services?
We compile mechanical shop parameters with advanced modeling software to deliver error-free fabrication blueprints that keep workshop and field crews aligned.
A specialized team of drafters experienced in piping fabrication, welding parameters, and pipeline sequence logistics.
Direct database extracts using Revit, Plant 3D, and AVEVA E3D to output error-free spools, cut lists, and weld codes.
Total alignment with ASME B31.3 (Process Piping), ASME B31.1 (Power Piping), ASTM classifications, and AWS weld standards.
Spool Drawing Package Deliverables
- ✓ Spool Number & Unique Identifier tag links
- ✓ Pipe Cut Lengths, Offset dimensions, & angles
- ✓ Weld Numbers & Shop vs. Field weld maps
- ✓ Pipe Material specs & ASTM/ASME grades
- ✓ Detailed Bill of Materials (BOM) per spool
- ✓ End bevel preparations, PWHT, & NDE requirements
- ✓ Center of gravity & estimated rigging weight
- ✓ Orientation marks & installation alignment guides
Frequently Asked Questions
Everything you need to know about our pre-fabrication spool drawing deliverables and detailing methods.
Spool drawings contain a unique spool identifier linking it to the parent isometric, dimensions (lengths, offsets, angles), weld numbers, material specifications (grade, size, schedule), bill of materials, end preparations, heat treatment, NDE requirements, spool weight, and orientation marks.
We utilize industry-standard BIM and CAD platforms including Autodesk Revit, AutoCAD Plant 3D, AVEVA E3D, Intergraph Spoolgen, and specialized spooling plugins. The platform depends on your specific project requirements.
Using automated spooling tools, a spool drawing can be generated from an existing design isometric in 15 minutes. Manual detailing ranges from 30 to 45 minutes per drawing. Our automation workflow significantly compresses schedules.
Yes, spool drawings can be generated from 2D PDF layouts. While 3D models are preferred for efficiency and clash checking, our detailing team can extract lines and detail spools directly from PDFs when 3D files are unavailable.
Fabrication drawings represent the coordinated design layout of the entire piping network or large systems. Spool drawings segment this system into individual transportable, pre-assemblies (spools) that can be welded in a shop.
Yes. Every individual spool drawing has its own distinct Bill of Materials (BOM) on the sheet. This functions as a precise material takeoff for the fabricator to pull pipes, flanges, and fittings.
